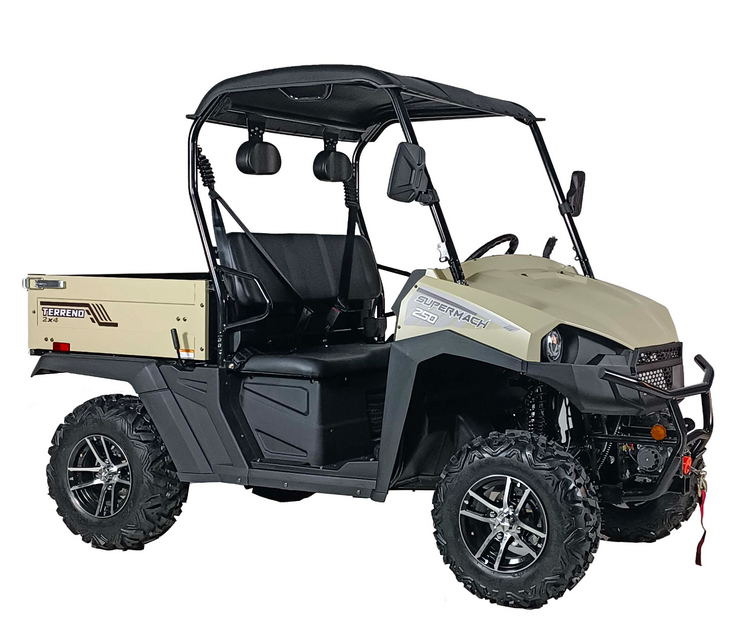

To place an order, please contact us sales@supermach.com Specification UTV 250-2 Engine model JN172MM/JN1P65YML-6 Battery 12V 9AH Type Single Cylinder, Four-Stroke, Horizontal, Forced Air Cooling (oil cooler can be added) Bore* stroke 65*60 Compression ratio 9.5:1 Working volume of cylinder 199.1mL Max. engine power (E-mark) 9.3kW/7000r/min Maximum Speed 37MPH (60KM) Max. engine torque Air Cooling Fuel Grade 92 Lubrication Method Pressure Splash Type Starting Model Electric Starting Ignition Mode CDI Transmission Mode Manual Vehicle Commander 106in (2700mm) Vehicle Width 57in (1450mm) Car Height 76in (1940mm) Wheelbase 70in (1790mm) Track width Front: 45.3in (1150mm) Rear: 45.3in (1150mm) Minimum Ground Clearance 11.8in (300mm) Seat Cushion Height 33.6in (854mm) Turning Circle Radius 197in (5000mm) More Specification Damping Form Coil Spring Damping Brake Type Main Brake Hydraulic Disc Type One Drive Four Emergency/ Parking Brake Brake Rear Axle /Manual Operation Rim Type Aluminium Tyre Specification Front: 25* 8-12/ Rear: 25 * 10-12 Fuel Tank Volume 23L Rated Load Capacity 794 lbs Container Load 441 lbs Max. Total Mass 1790 lbs Frame Steel Pipe Structure Clutch Type Automatic Clutch Crankcase Lubricating Oil SF-15W/40 Oil Capacity 41oz (1200ml) Fuel Tank Capacity 6Gallons (23L) Headlamps 35W LED White Light Drive Mode Rear Drive Parking mode Two Rounds Parking Brake Mechanical Magneto Type Flywheel Rotor Type DC Output Number of Containers (40GP) 16 Package Size 91.7in x 57.5in x 49.6in
